Quick 32kg Galvanised steel anchor with a plough-shaped arm.

Specs:

• Weight: 32kg (70.55 lb)

• Recommended chain size: 10mm (3/8 inch)

• Boat length*: 13-16 meters (43-52 ft)

• Material: Hot dipped Galvanised steel

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

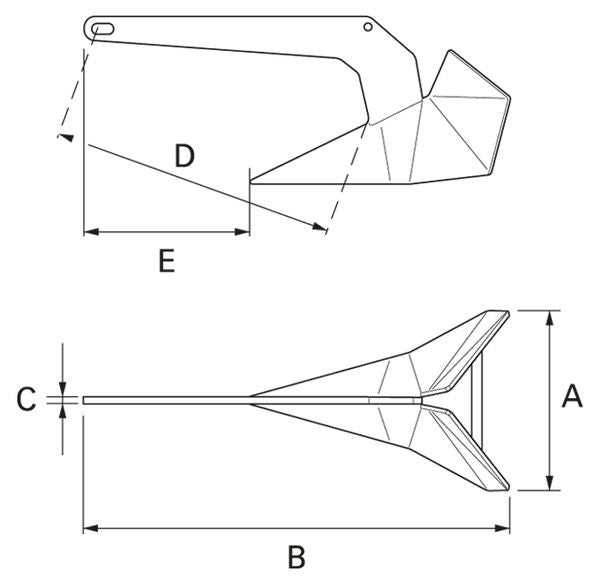

Dimensions (see image for reference):

A: 455mm (17" 7/8)

B: 970mm (38" 1/4)

C: 16mm (3/4 ")

D: 730mm (28" 3/4)

E: 360mm (14" 1/4)

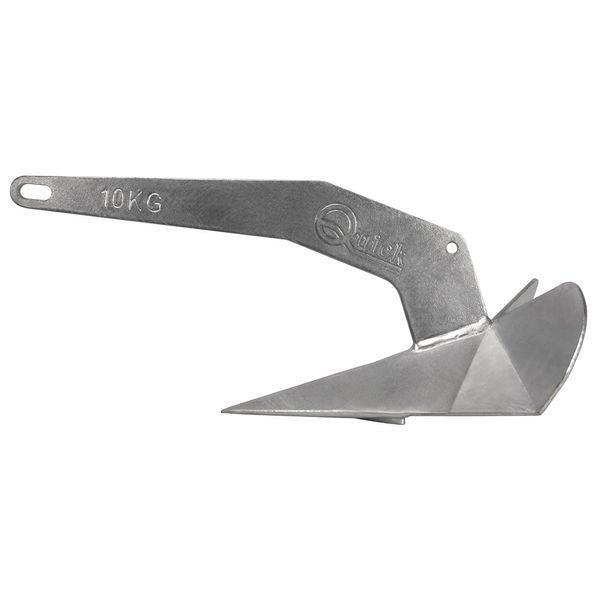

PLEASE NOTE: The image shows a 10kg version of the anchor - however, this product is 32kgs.
