Quick DR4 1712D Windlass Gypsy & Drum (1700W / 12V / 10mm)

Quick DR4 1712D Windlass Gypsy & Drum (1700W / 12V / 10mm)

SKU:

£3,152.53

Availability: In Stock

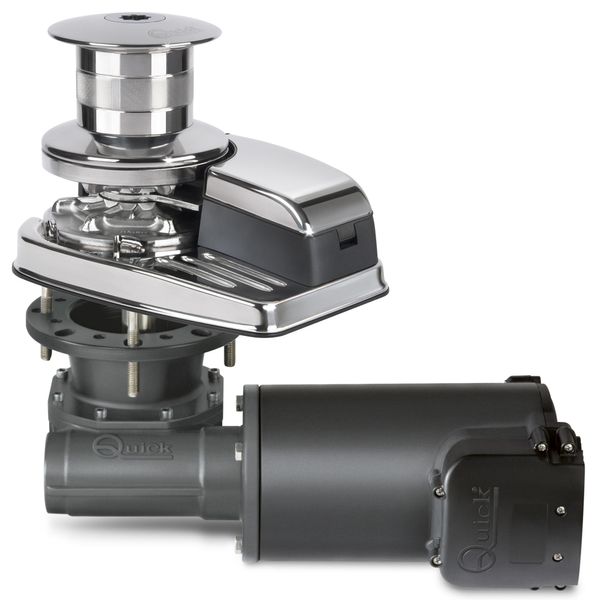

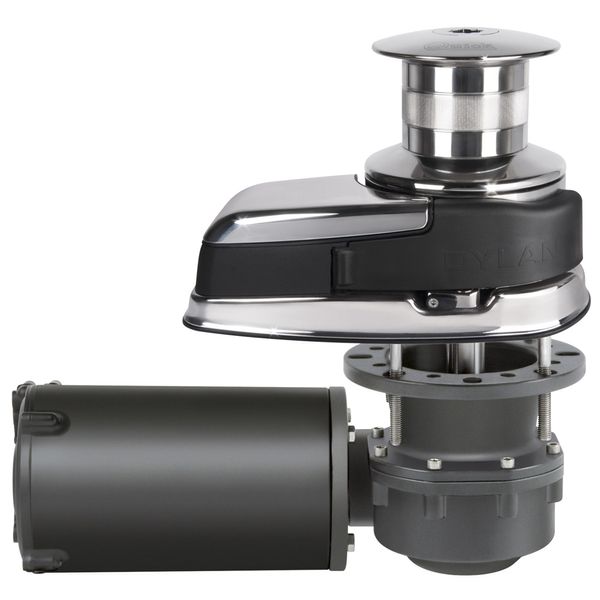

The Quick DR4 1712D vertical windlass is suitable for boats from 14 - 18 meters (46 - 59 ft) and is supplied with a contactor unit and aluminium handle as standard. Its base is constructed in stainless steel AISI 316 and anodized aluminium in hard oxide, making it extremely durable.

This windlass features a 10mm (3/8") gypsy which is suitable for 10mm DIN 766, 10mm ISO and 3/8" G4 chain, as well as 5/8" (15.8mm) - 3/4" (19mm) rope (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the ‘Slim Splice Quick®'). This DR4 1712D model also features a drum.

This product consists of windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user's manual and conditions of warranty.

Key Features

Vertical windlass

Base in stainless steel AISI316 and Anodised aluminium in hard oxide

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Manual Free-Fall system

Emergency manual lift system

Supplied with pressure lever

Inspection lid

IP67 watertight motor

Anodised aluminium gearbox
