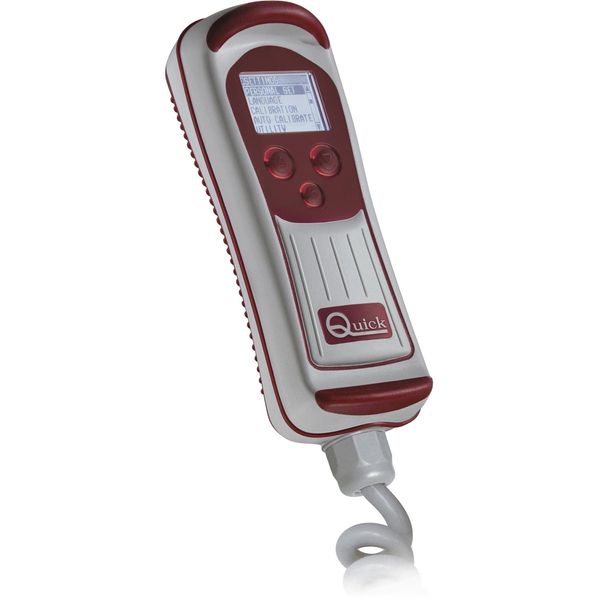

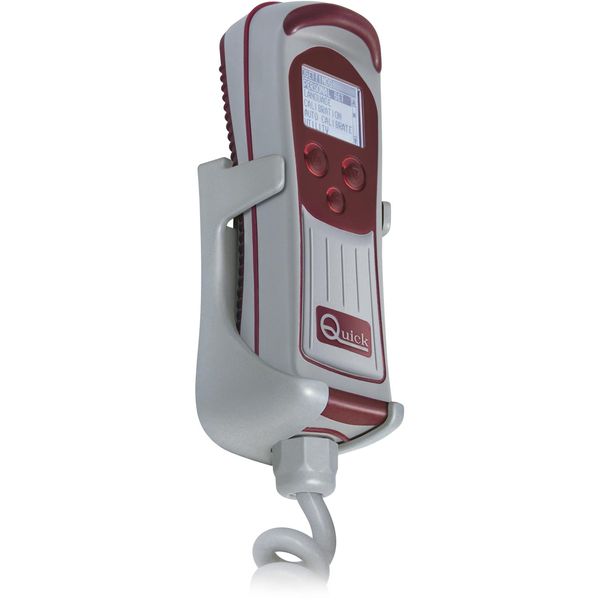

The Quick chain counter CHC1103 allows the windlass to be activated to get the anchor aweigh or lower the anchor providing the measure of the chain lowered. Quick has a vast experience in the world of sailing, which has allowed them to design and develop the CHC1103 chain counter that has a widely superior performance to similar instruments available on the marine market.

All Quick windlasses are supplied with a laps sensor, which is suitable for use with chain counter CHC1103.

For other makes of windlasses the chain counter requires a laps sensor kit (supplied) to measure the length of the chain lowered, it has to count the number of revolutions completed by the gypsy gear that drives the chain. The laps kit includes: a cylindrical magnet, a magnetic field sensor and two plastic adaptors to be used to fix the sensor. The magnet is to be fixed to the gypsy and the magnetic sensor is to be fixed to the windlass base.

Quick CHC 1103 Remote Chain Counter Features:

Simple user-friendly interface

Information displayed in 5 different languages

Automatic lowering function. Up alarm function

Locked keys function. Can also be used in winch operations

Windlass management with auto free fall

Anchor recovery function in case of sensor failure

Chain speed displayed

Supply voltage displayed

Depth of chain lowered shown in meters or feet

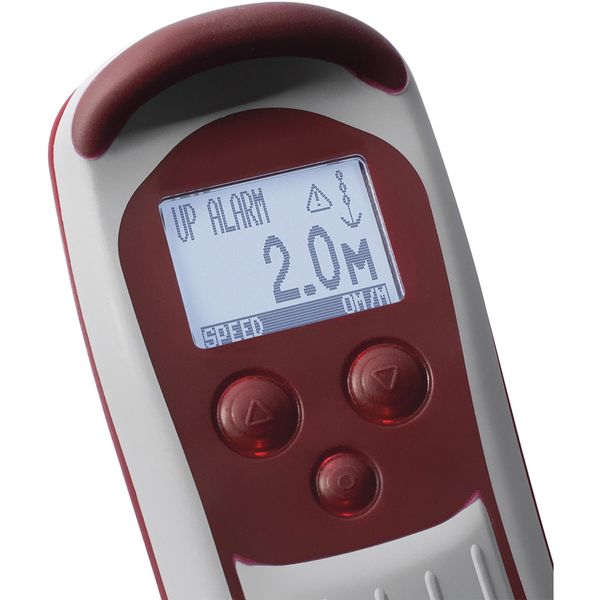

Graphic LCD display screen that can be easily read at various angles

Backlight display screen with 8 brightness levels

8 different display contrast levels can be set

Automatic display contrast compensation according to environmental temperature

Universal power supply (12/24V DC)

Backlight illuminated function keys

Equipped with LED torch

CAN BUS interface for data transfer (with differential transceiver)

Capable of operating in a wide range of ambient temperatures

Water-proof housing

Key Features

Simple user-friendly interface

Anchor recovery function in case of sensor failure

LCD display of chain depth (in meters or feet), chain speed, supply voltage

Backlight display screen

Backlight illuminated function keys

Equipped with LED torch

Water-proof housing
