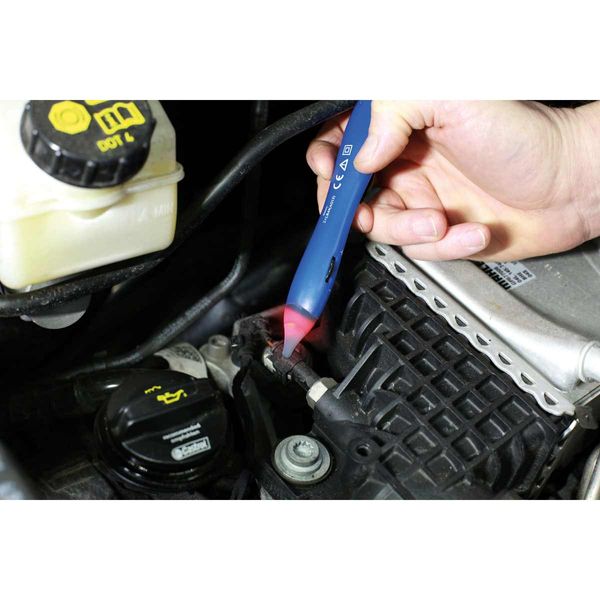

Non-contact voltage and magnetic field detector with audible and visual indication for AC current, CAT IV 12V to 1000V. Can be used on switched DC solenoid circuits and relays without dismantling, together with fuel injectors and ignition coils, etc.

Working Voltage range: 12 - 1000V AC.

AC Frequency: 50/60Hz.

Operating Current: =18mA.

Pollution degree: 2 (accordance with IEC-664).

Dielectric Strength: 2000V, 1 minute, 100µA or less during dielectric strength test.

Operating Environment: 0° to 40°C (30° - 104°F). 80% RH mas. 50RG above 31°C.

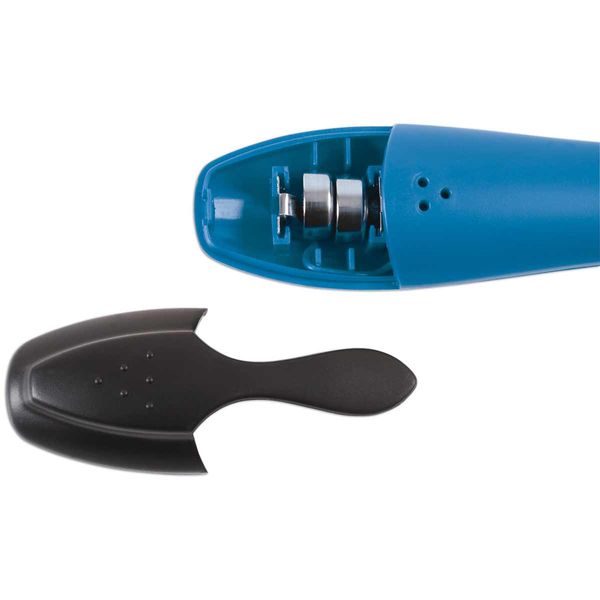

Batteries: 2 x 1.5V button type (LR44/AG13).
