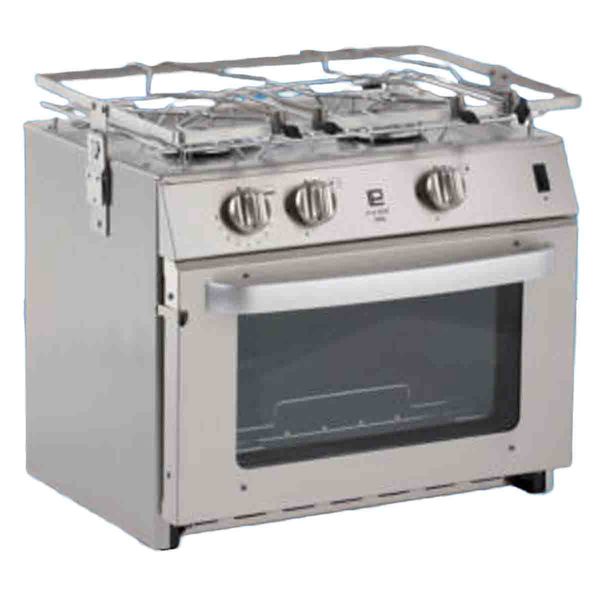

The Pacific 5000

This compact continental cooker includes 2 hob burners, and a compact oven. This unit is ideal for larger vessels that aren’t constrained by space. This cooker has 1 large rapide burner and 1 standard semi rapide hob burner, a thermostatically controlled oven, is protected by flame failure safety cut-outs, has electric spark ignition, a sea rail, a gimbal lock and a door safety catch to prevent the door opening if the boat heels. Can be used on butane or propane.

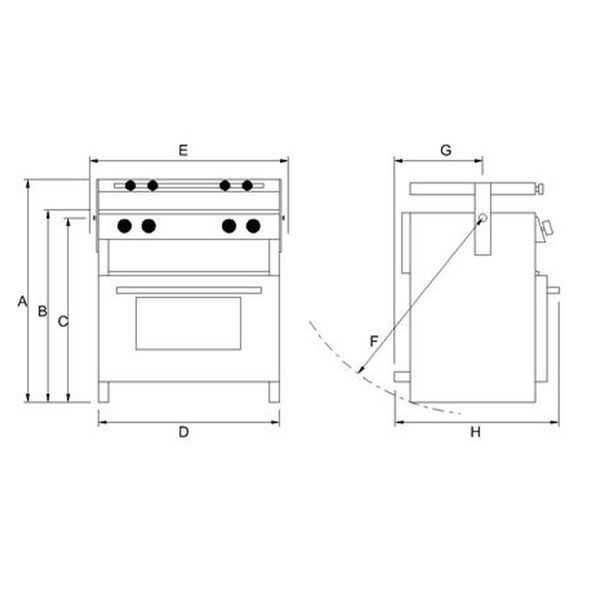

A) Base to top of sea rail - 485mm

Base to top of spillage tray - 412mm

B) Base to top of pan support - 435mm

C) Base to top of gimbal point - 416mm

D) Cooker width - 500mm

E) Gimballed width - 520mm

F) Gimbal arc - 460mm

G) Gimbal point to back stop - 240mm

H) Cooker depth - 460mm

(see labelled image)

3 hob version: 6-02353

Find all spare parts on Aquafax via; Pan support (16-02200-33), Oven shelf (16-02200-35), Spark generator (16-02200-37), Door seal (16-02200-45), Battery holder (16-02200-44), Burner cap screw (16-02200-12), Semi rapide burner assembly (16-02200-41), Rapide burner assembly (16-02200-42), Hob Thermocouple (16-02200-3), Semi rapide flame spreader (16-02200-6), Semi rapide burner cap (16-02200-7), Rapide burner cap (16-02200-9), Push fit oven thermocouple (16-02200-1), Control knobs (16-02200-29)

Key Features

Compact oven

Thermostatically controlled oven

Door safety catch

Failure safety cut outs
