Quick 7.5kg stainless steel anchor with a plough-shaped arm.

Specs:

• Weight: 7.5kg (16.53 lb)

• Recommended chain size: 7-8mm (5/16 inch)

• Boat length*: 7-10 meters (23-33 ft)

• Material: AISI 316 Stainless steel

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

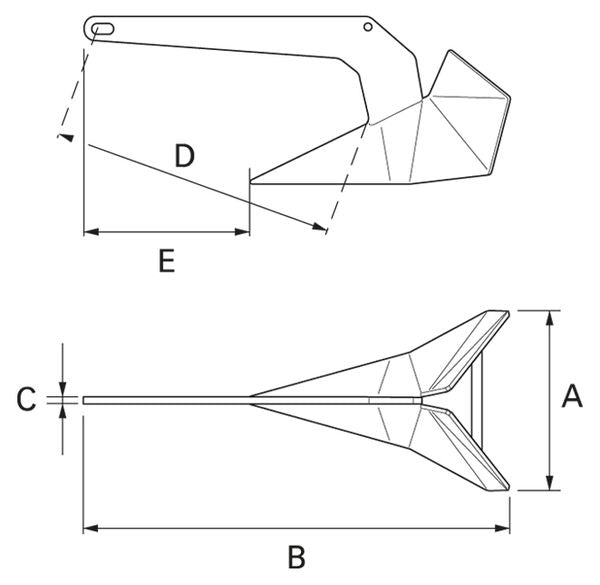

Dimensions (see image for reference):

A: 260mm (10" 1/4)

B: 630mm (24" 7/8)

C: 10mm (3/8 ")

D: 490mm (19" 1/4)

E: 290mm (11" 3/8)

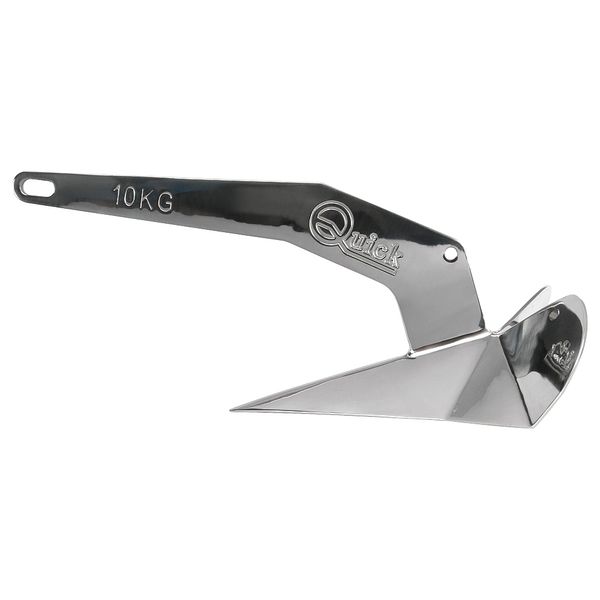

PLEASE NOTE: The image shows a 10kg version of the anchor - however, this product is 7.5kgs.
