Quick 25kg Galvanised steel anchor with a plough-shaped arm.

Specs:

• Weight: 25kg (55.12 lb)

• Recommended chain size: 10mm (3/8 inch)

• Boat length*: 13-16 meters (43-52 ft)

• Material: Hot dipped Galvanised steel

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

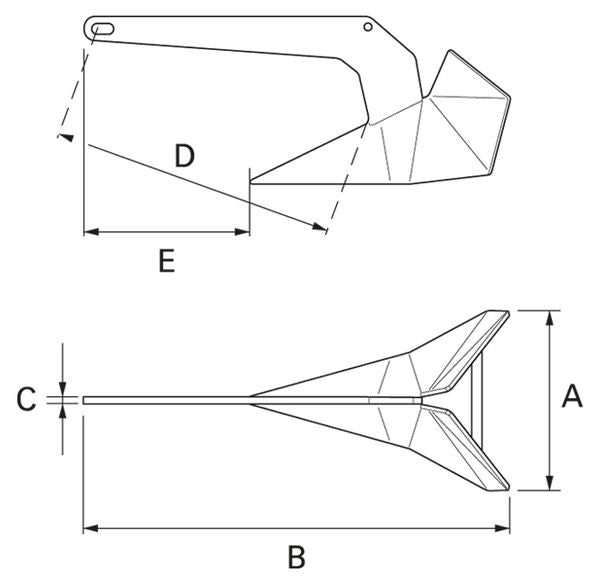

Dimensions (see image for reference):

A: 415mm (16" 3/8)

B: 920mm (36" 1/4)

C: 16mm (3/4 ")

D: 690mm (27" 1/8)

E: 385mm (15" 1/8)

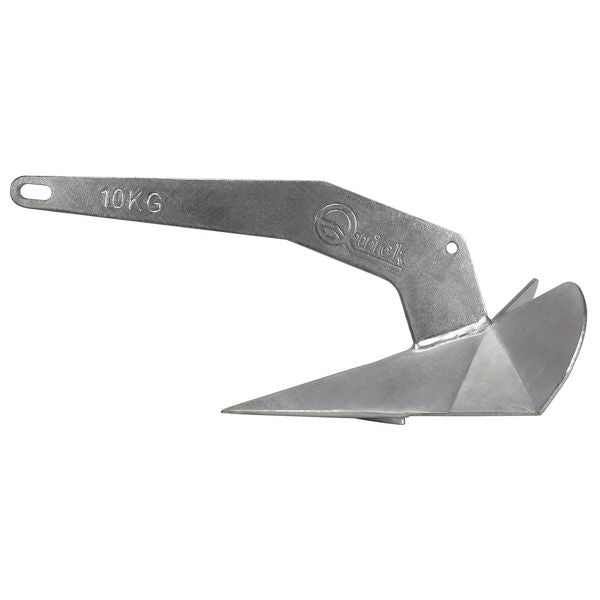

PLEASE NOTE: The image shows a 10kg version of the anchor - however, this product is 25kgs.
