Quick 15kg Galvanised steel anchor with a plough-shaped arm.

Specs:

• Weight: 15kg (33.07 lb)

• Recommended chain size: 8-10mm (5/16 inch)

• Boat length*: 10-14 meters (33-46 ft)

• Material: Hot dipped Galvanised steel

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

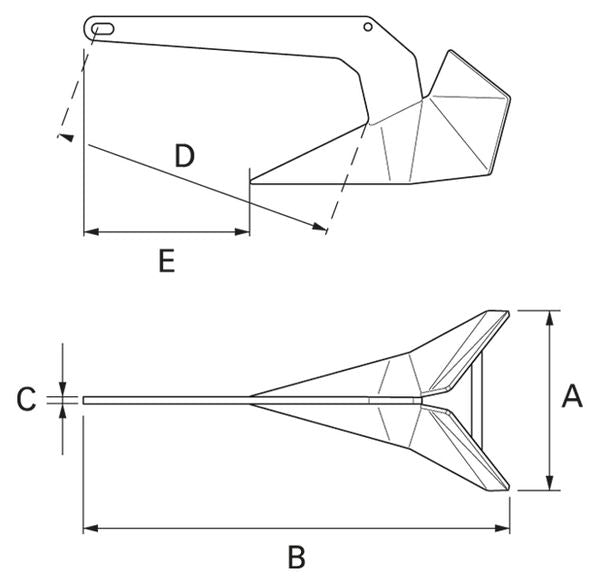

Dimensions (see image for reference):

A: 350mm (13" 3/4)

B: 780mm (30" 3/4)

C: 17mm (3/4 ")

D: 560mm (22" 1/16)

E: 270mm (10" 3/4)

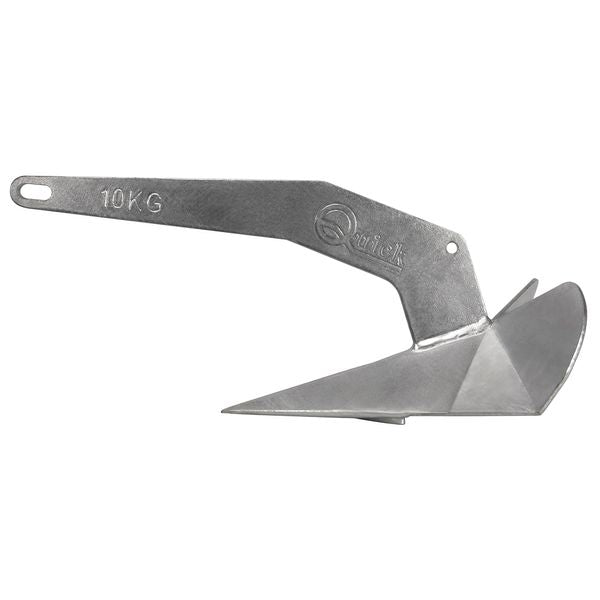

PLEASE NOTE: The image shows a 10kg version of the anchor - however, this product is 15kgs.
