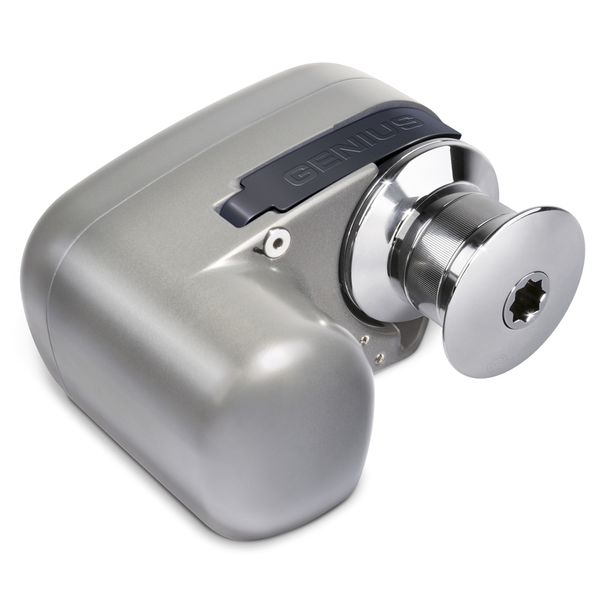

The Quick GP2 1500D horizontal on-deck windlass is suitable for boats from 6-10 meters (20-33 ft) and is supplied with a 12V T6415-12 contactor unit and a lever for the windlass as standard. This particular model has an anodized aluminium in hard oxide base and an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).

This windlass features an 8mm gypsy which is suitable for 8mm DIN 766, 8mm ISO and 5/16" G4 chain, as well as 1/2" (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

Product contents include the windlass (on deck unit and motor gearbox), drum, contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user's manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

Anodized alluminium in hard oxide base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Epicyclical gearbox
